Quasar E1 - multichannel digital E1 card for Asterisk

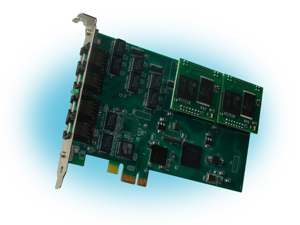

foto

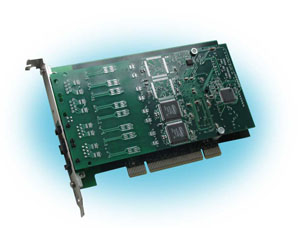

foto

Features
  • 8 (4) E1 ports
  • Hardware echo cancellation
  • Embedded TDM switch
  • DMA mode
  • PCI,PCIe or PMC card form factor
  • Linux DAHDI/Asterisk driver
  • Linux configuration utility
  • Works with any DAHDI-compatible PBX
    Asterisk, FreeSwitch, Yate
Resources


Description

Quasar is an 8 (4) ports E1 interface card, developed for use in PCI/PCIe/PMC slots. The card provides simultaneous 256-voice channel processing and channel cross switching without CPU loading. The primary application is to attach the Asterisk software PBX to E1 channels.


Technical data

Connector type RJ45, 8 contacts
Cable type symmetrical twisted pair, 120 ohm
Nominal pulse voltage 3 V +- 10%
Data transmission rate 2048 kbit/s +- 50 ppm
Coding AMI or HDB3
Signal attenuation, no more than -40 db for port 0, -6 db for port 1
Conformance to standards ITU-T G.703, G.704, G.706, G.732, G.823
E1 multiframe CRC4, CAS
Dimensions 130 x 120 x 20 mm
Bus interface

PCI 32 bits, 33 Mhz, PCI master capable

or

PCIe 1x

Software support
  • Configuration utility for Linux
  • DAHDI driver for Asterisk


Order codes

Quasar-8PMC 8 E1 ports, PMC
Quasar-4PMC 4 E1 ports, PMC
Quasar-8PCI 8 E1 ports, PCI
Quasar-4PCI 4 E1 ports, PCI
Quasar-8PCX 8 E1 ports, PCIe
Quasar-4PCX 4 E1 ports, PCIe
Quasar-8PCX-EC 8 E1 ports, PCIe, echo canceller
Quasar-4PCX-EC 4 E1 ports, PCIe, echo canceller
Quasar-8PCI-EC 8 E1 ports, PCI, echo canceller
Quasar-4PCI-EC 4 E1 ports, PCI, echo canceller



Applications

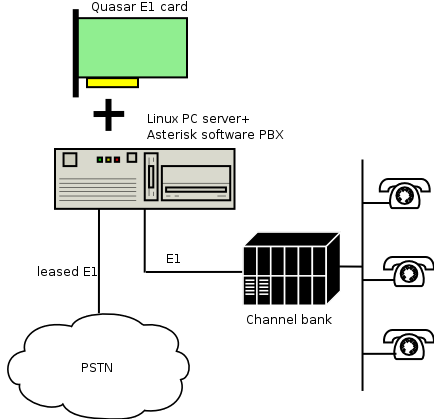

Office PBX with exterior E1 line





Corporative VOIP gateway

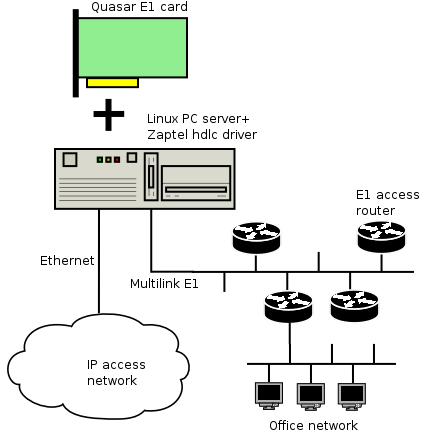

E1 access server



  • 8 (4) E1 channels
  • PCI or PCI express interface
  • Embedded TDM switch
  • PMC form factor (IEEE P1386.1)
  • PCI/PCIe card form factor
  • Linux Asterisk driver
  • Linux configuration utility
